Specifications:
- Powder-coated aluminum profiles
- Stainless & galvanized steel components
- Roof made of operable aluminum blades
- Mobile roof opens electrically
- Protects against sun and rain
- The angle of inclination of blades can be changed
- Product design is offered in color from the RAL color chart
- The integrated water drainage gutter
- Protection against Sun, Rain & Wind
- Motors ensure IP 65 ingress protection of the enclosure
- Maximum dimensions of a single module: 16’ width and 23’ projection
- Minimum dimensions of a single module: 59” width and 59” projection
- Possibility of the modular connection
- Optional LED lighting application
- Possibility of using weather automation
Pergola SB500
Standard Colors:
Take full control of your robust system through a library of color schemes.
Pergola SB500
Sizes:
Extend the dimensions of your system through modular connections. Our systems are made to link up with one another to create your final vision.
![](https://seltsystems.com/wp-content/uploads/2020/10/SB-500-Technical-Drawing-1-uai-258x258.jpg)

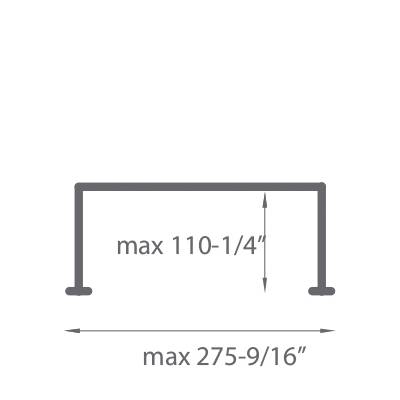

Maximum Projection
![](https://seltsystems.com/wp-content/uploads/2020/10/SB-500-Technical-Drawing-2-uai-258x258.jpg)

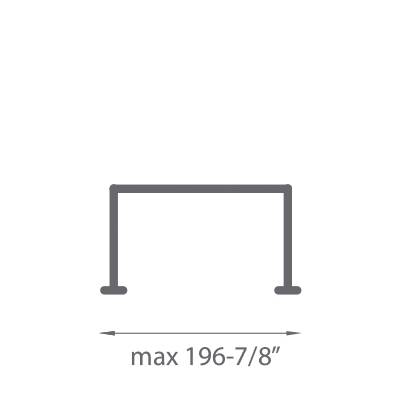

Maximum Width
![](https://seltsystems.com/wp-content/uploads/2020/10/SB-500-Technical-Drawing-3-uai-258x258.jpg)

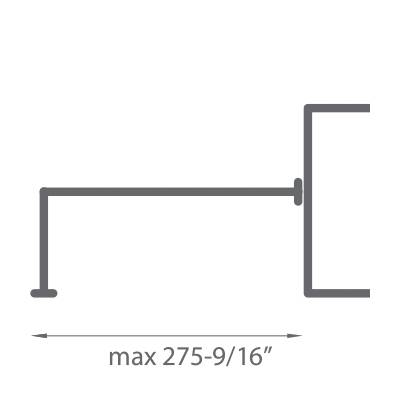

Wall Version
Pergola SB500
Installation Methods:
Whether you’re looking to enhance your own outdoor living space or increase outdoor seating space at your business, Selt is here to accommodate. Suit your space with our modernized free-standing or wall-mounted system to redefine your area.
![](https://seltsystems.com/wp-content/uploads/2020/03/sb500-free-standing-version2-uai-258x258.jpg)

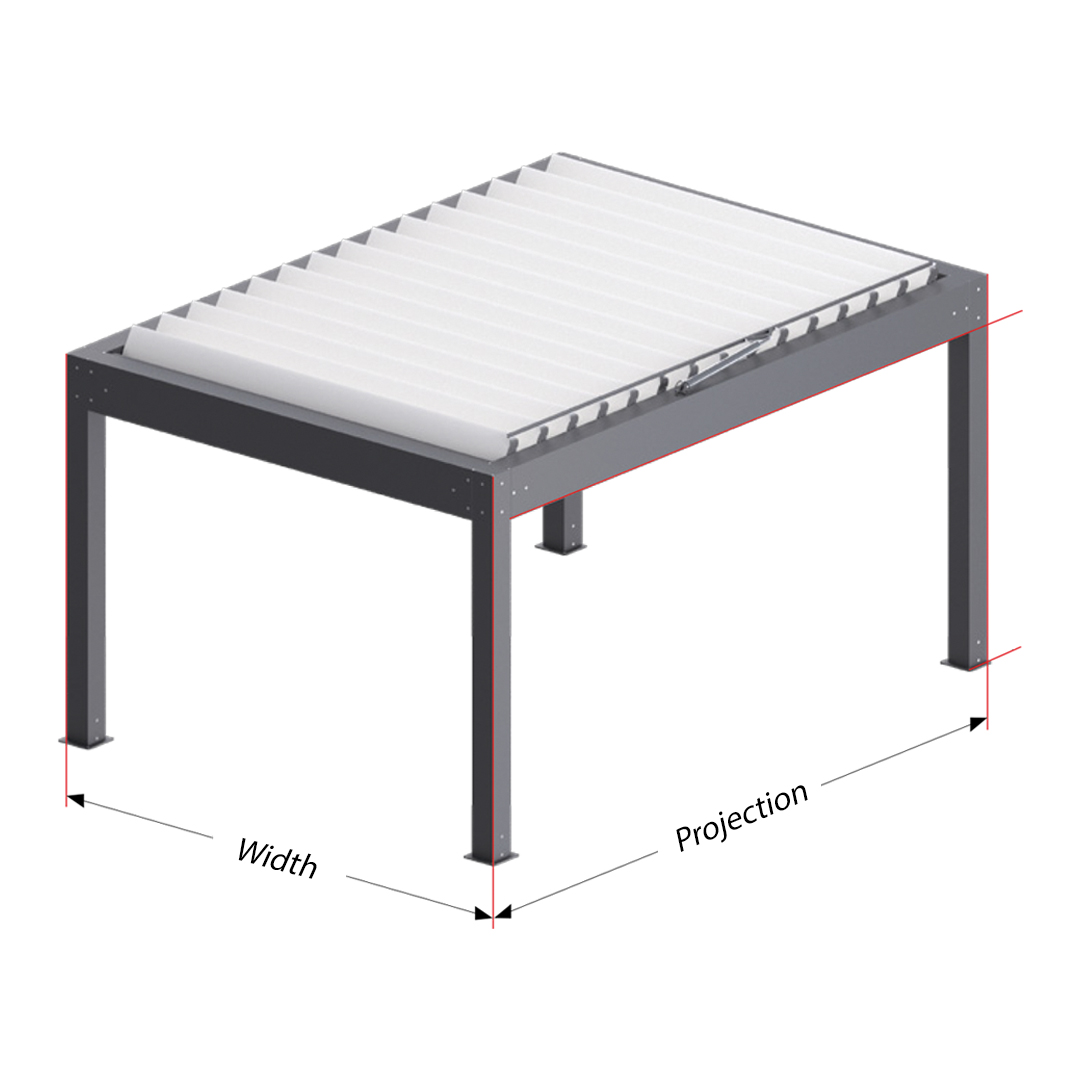

Free-standing version
![](https://seltsystems.com/wp-content/uploads/2020/03/sb500-wall-version-uai-258x258.jpg)

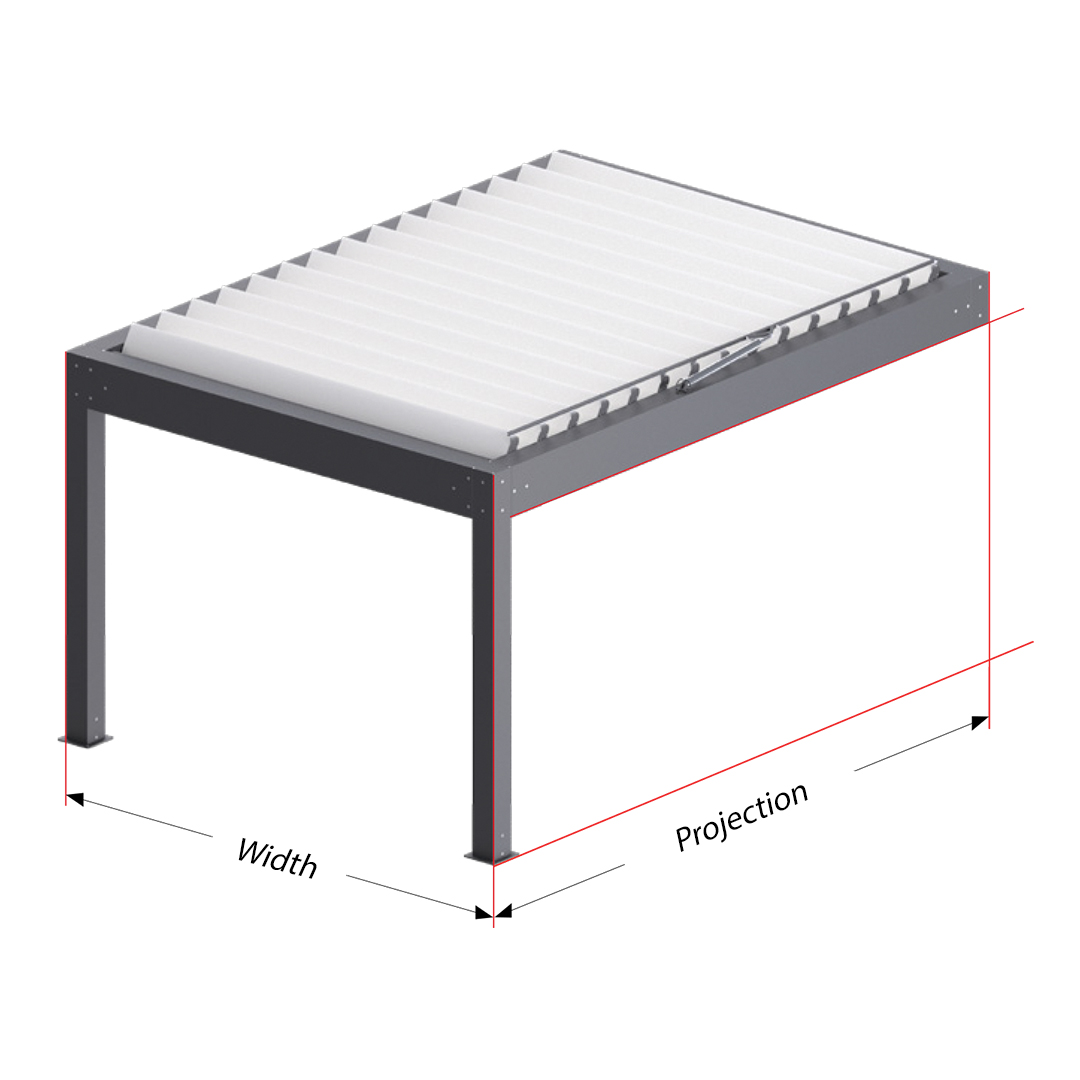

Wall-mounted version with beam bracket
![](https://seltsystems.com/wp-content/uploads/2020/03/sb500-modular-version-uai-258x258.jpg)

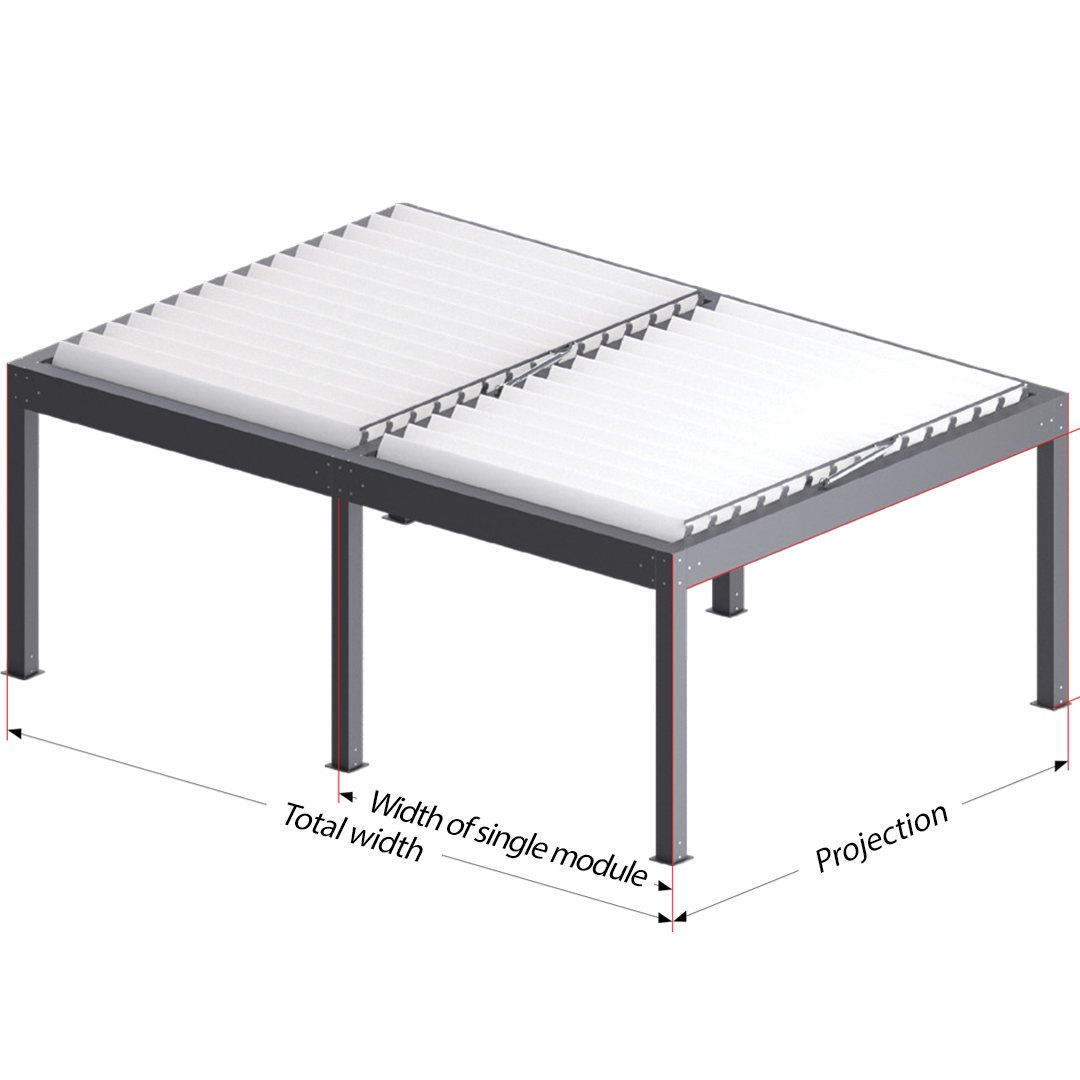

Modular version
Pergola SB500
Cross Sections:
Our powder-coated aluminum systems are battle-tested when it comes to industry certifications and standards. Our systems stand strong and are engineered with superior precision.
Pergola SB500
Blades & Engine:
Each durable system is equipped with a 24v actuator to power the operable blades. Enjoy the sweet muted motor as you open, close, or stop the blades at your desired position with the simple flip of a switch.
![](https://seltsystems.com/wp-content/uploads/2020/03/sb500-selt-systems-electric-motor-uai-258x258.jpg)

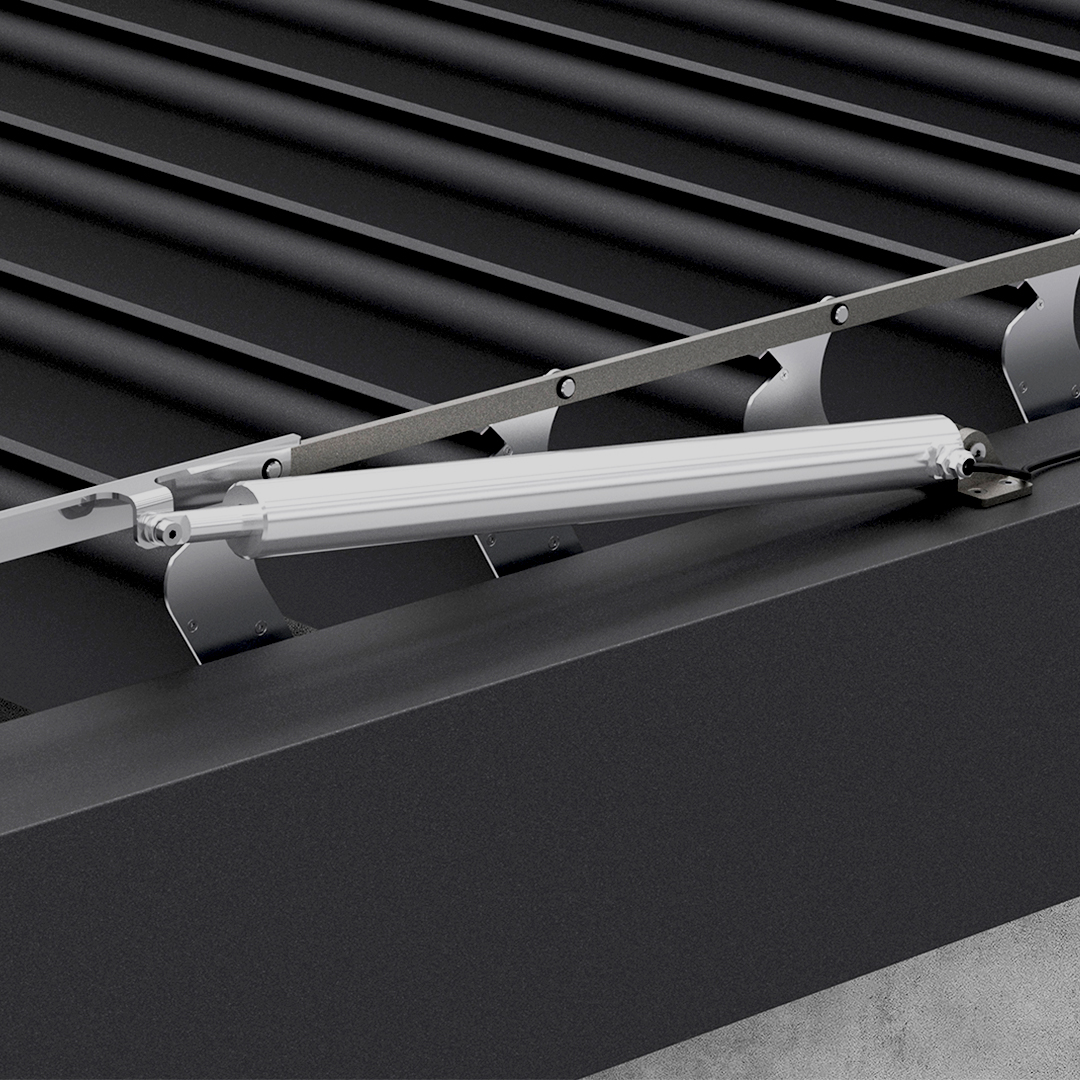

Electric motor with switch
![](https://seltsystems.com/wp-content/uploads/2020/02/Pioro-Pergola-Drive-Side-uai-258x258.jpg)

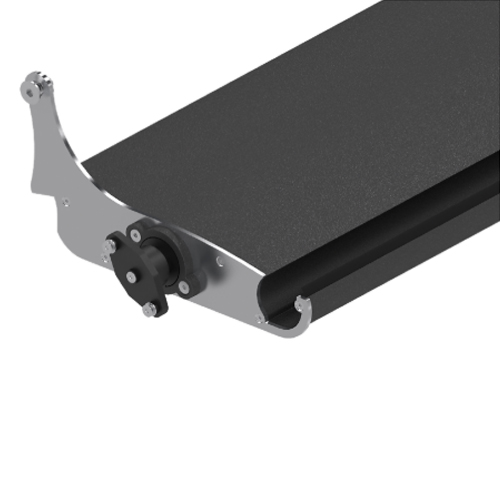

(Drive side) with drainage system
![](https://seltsystems.com/wp-content/uploads/2020/02/Pioro-Pergola-uai-258x258.jpg)

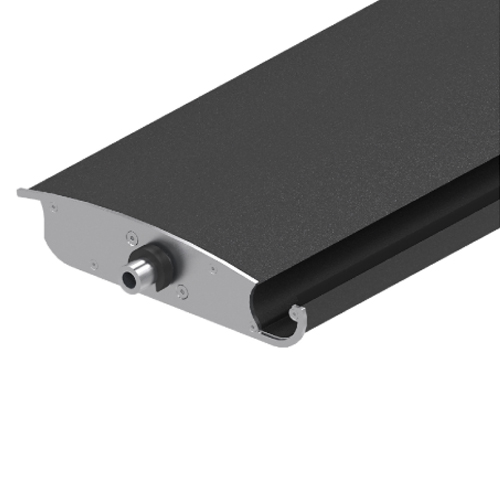

(Non-drive side) with drainage system
![](https://seltsystems.com/wp-content/uploads/2021/01/Selt-Before-1-uai-258x145.jpg)
![](https://seltsystems.com/wp-content/uploads/2021/01/Selt-After-2-uai-258x145.jpg)
the simple flip
optional
LED Lighting

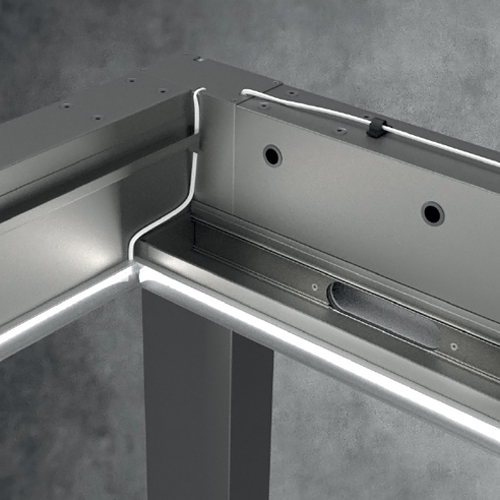

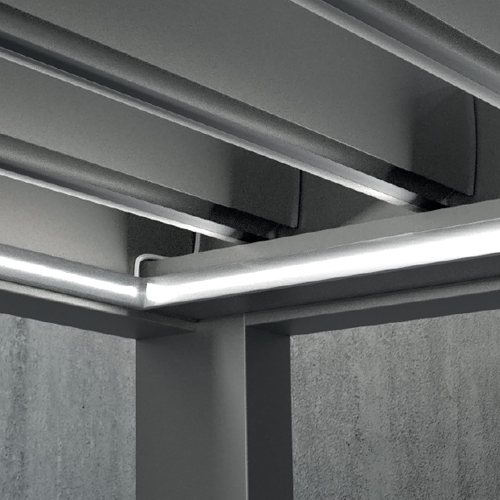

Designed for Pergola SB400 or SB500 as a group of components enabling to install a circuit lighting with LED tapes, inside the contour of the pergola.
![](https://seltsystems.com/wp-content/uploads/2021/01/Selt-LED-Lighting-SB400-selsystem-A-uai-258x258.jpg)
LED Lighting
![](https://seltsystems.com/wp-content/uploads/2021/01/Selt-LED-Lighting2-SB400-selsystem-A-uai-258x258.jpg)
LED Lighting
Includes:
- 240V/24V power supply
- control device
- remote control

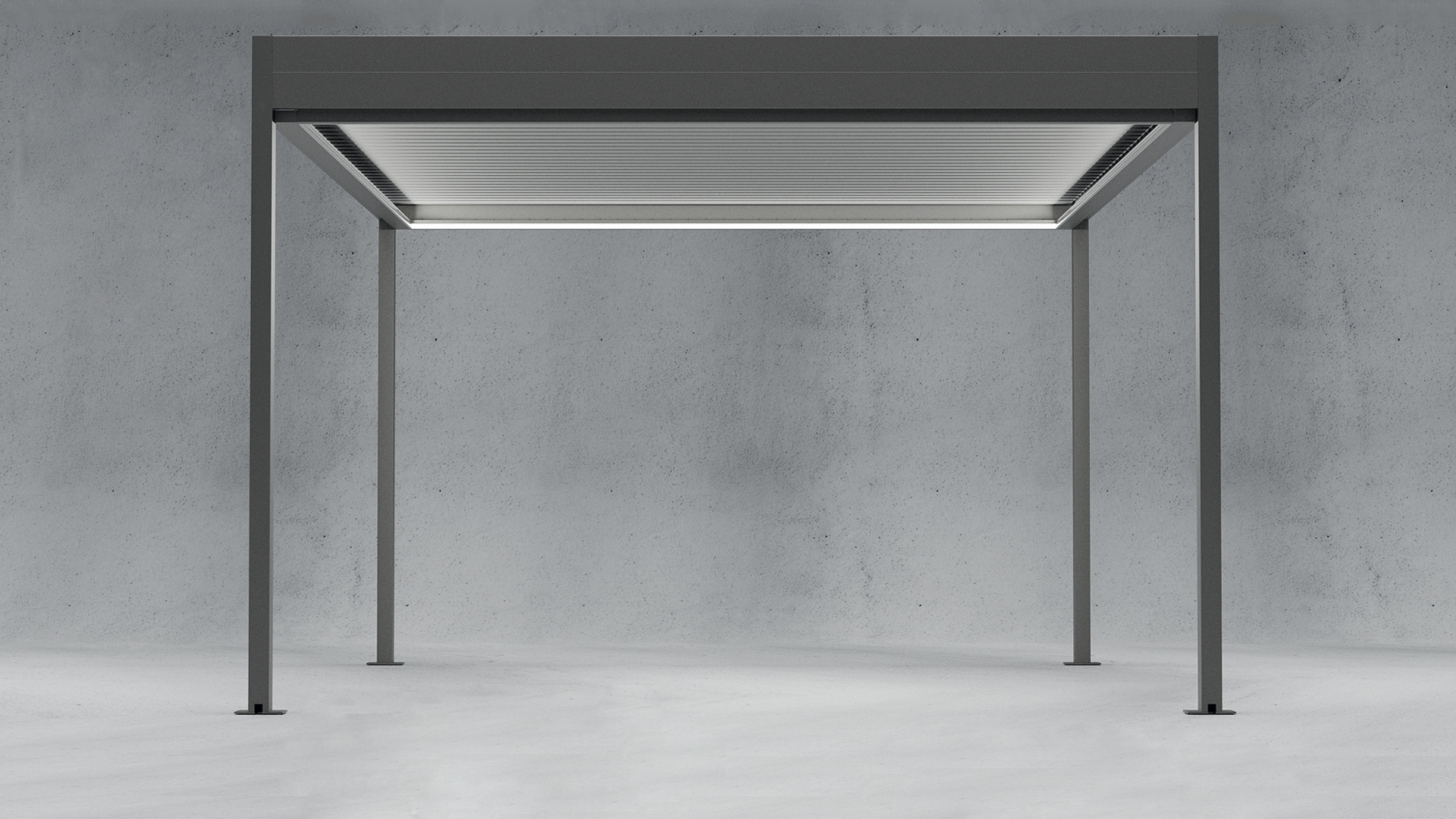

![](https://seltsystems.com/wp-content/uploads/2021/01/Selt-LED-Before-Wide-uai-258x145.jpg)
Be Bold Be Bright
Optional
Module System:
Select from our 3 enclosing options to further enhance your privacy. Each of our three options provides a unique touch to make the system your own. Choose from our electric drive roll down cassettes or track sliding fabric and blade modules.
![](https://seltsystems.com/wp-content/uploads/2020/10/sb500-side-panels-seltsystems-Arrows-G-uai-258x145.jpg)
